Ports in censhare environments
All ports must be TCP and are configured by default as mentioned below.
censhare Java clients
all Java-based clients, for example censhare Client, Admin Client, Render Client
1099 (RMI) and 30543-30545 (RMI highports) or
30546-30548 (RMI highport over SSL)
You can also specify a port directly, such as SSL, only with port 30546.
For this, add the port to the RMI URL within your hosts.xml:
url="rmis://<hostname/fqdn>:30546/corpus.RMIServerSSL"
In this case, only port 30546 will be used.
Configure fixed port for connections from censhare Server to censhare Render Client.
By default, the censhare Render Client binds to a random higher port. How to configure a fixed port is described here.
Application server to database
1521 (JDBC) for Oracle database
- 5432 for Postgres database
Access to censhare 5 Web
- 9000 (http) and 9443 (https)
As of censhare v5.8, http is not allowed anymore and will be deactivated by default.
As censhare 5 Web uses a build-in Jetty web server which also serves the REST interface and temporary download link, these ports are valid for those services, too.
censhare built-in FTP server
4242 for FTP: not exposed to the Internet
for FTPs (passive FTP):
- 4243 is the command port
- 4244-4349 is the data port range
censhare Online Channel and censhare application server
see above for RMI communication
censhare application servers among each other
see above for RMI communication
censhare ports diagrams
The diagrams below provide a rough overview of which ports are used and by which components. However, keep in mind that:
- those are not architecture diagrams; for architecture overview, please consult this page
- different network setups are possible and depend on your specific requirements
Therefore, the visualizations below are given for reference but should not be treated as direct instructions.

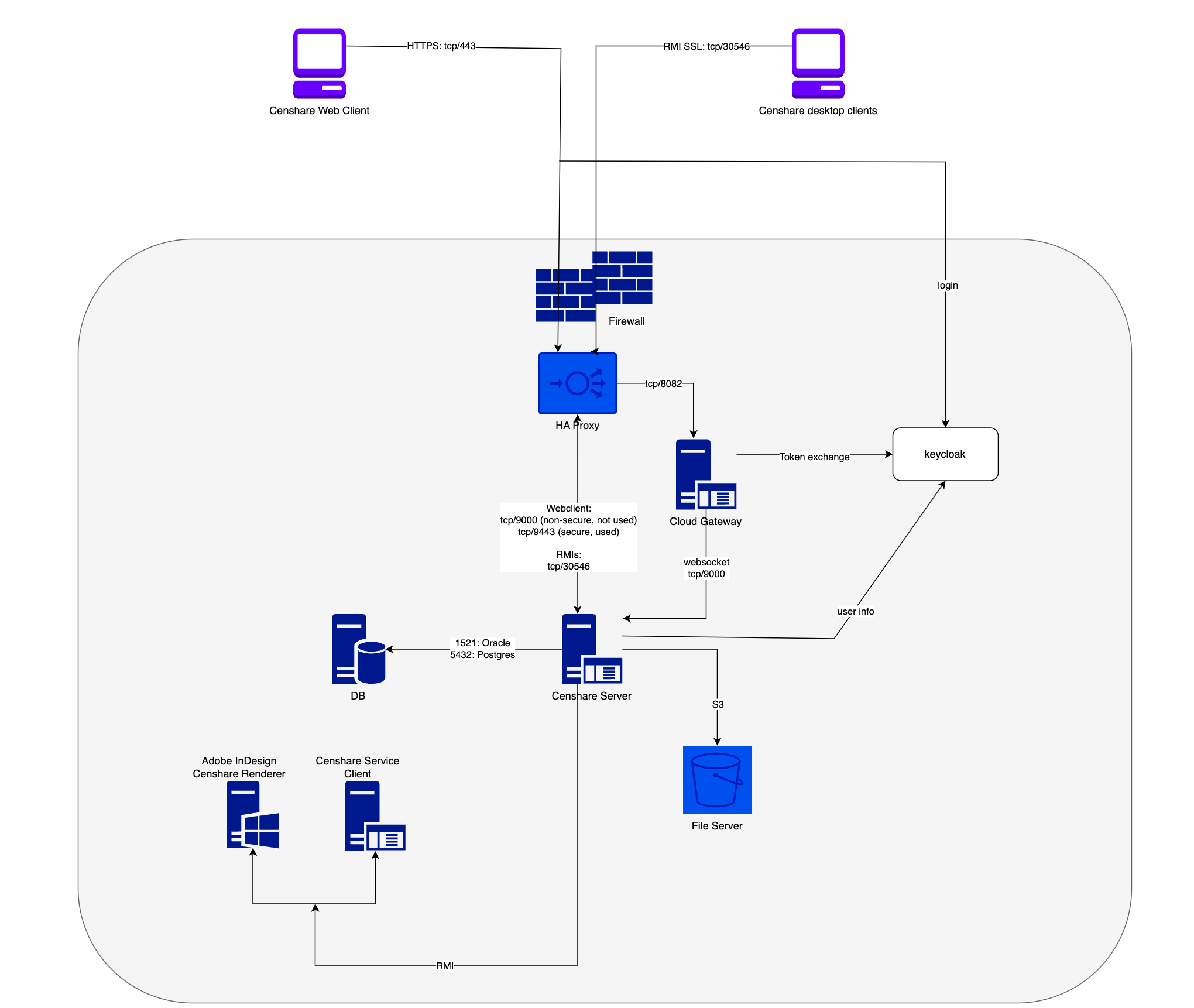

censhare Classic WP (2021.2 and higher)
censhare Cloud
The only exposed ports in a Cloud installations are Web Client and Java Client ports. See previous sections for exact information.

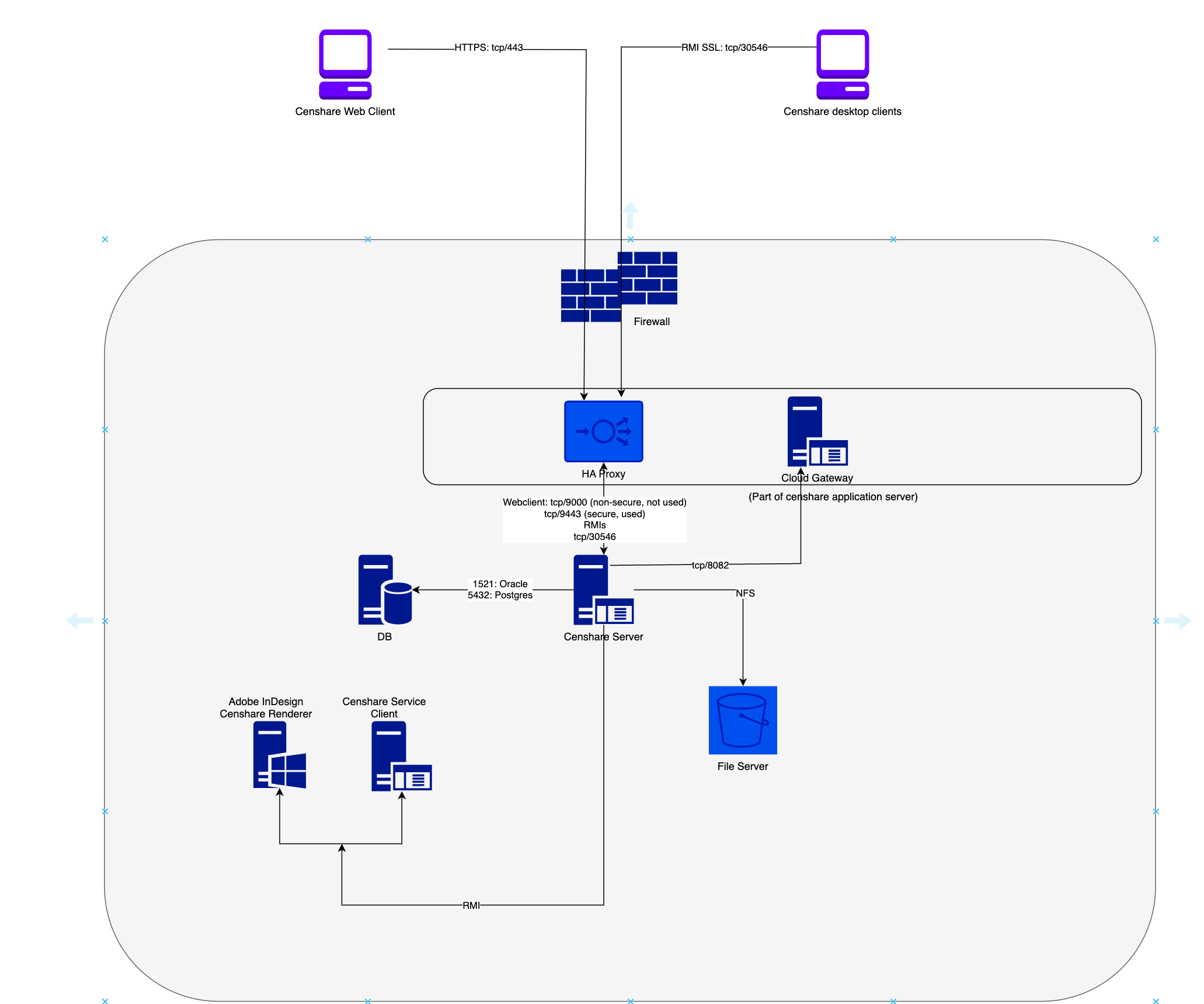

censhare Classic pre-WP (2021.1)
