RemoteDirector™ Soft Proofing

Remote Director is a PDF proof tool with a browser-based front-end and Web Service API.

Overview

Web Service API is used for a soft proofing integration with the censhare system. PDF documents of assets that can be sent to Remote Director (new server action and asset automation) and can be viewed in a browser window (new server action). The storage key and the storage  MIME type of the asset can be configured. A special license is needed for using this server functionality. A current client version is required to support the following:

CODE
<command target = "client" method = "showURLInBrowser" key = "input" />

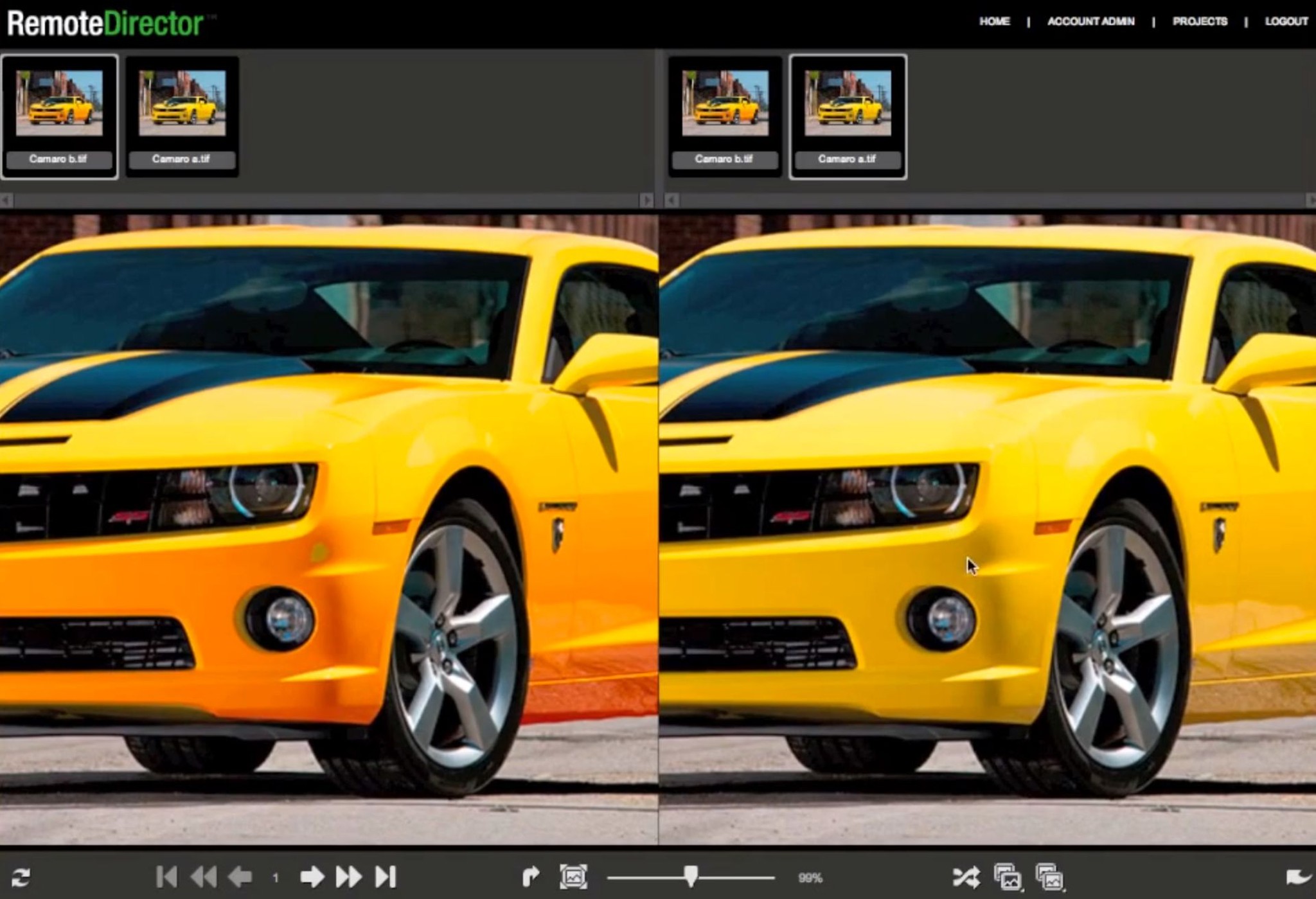

Example proof

The interface provides the following commands:

    • aa-create-proof-action (Server action)
    • aa-create-proof (Asset automation)
      Both check if the supplied asset has a storage item of the configured key and MIME-type. Other assets are ignored. If the proof ID feature is set already and the content version didn't change the asset is ignored (proof already available). Otherwise, a new proof is created, and the file is copied to the configured location using the proof ID as folder and the file name in the storage item and added to the proof.
    • open-proof-action (Server action)

      This creates a new proof according to the sequence above if required. It creates a URL using a generated security ticket and tells the client to open it in the browser.

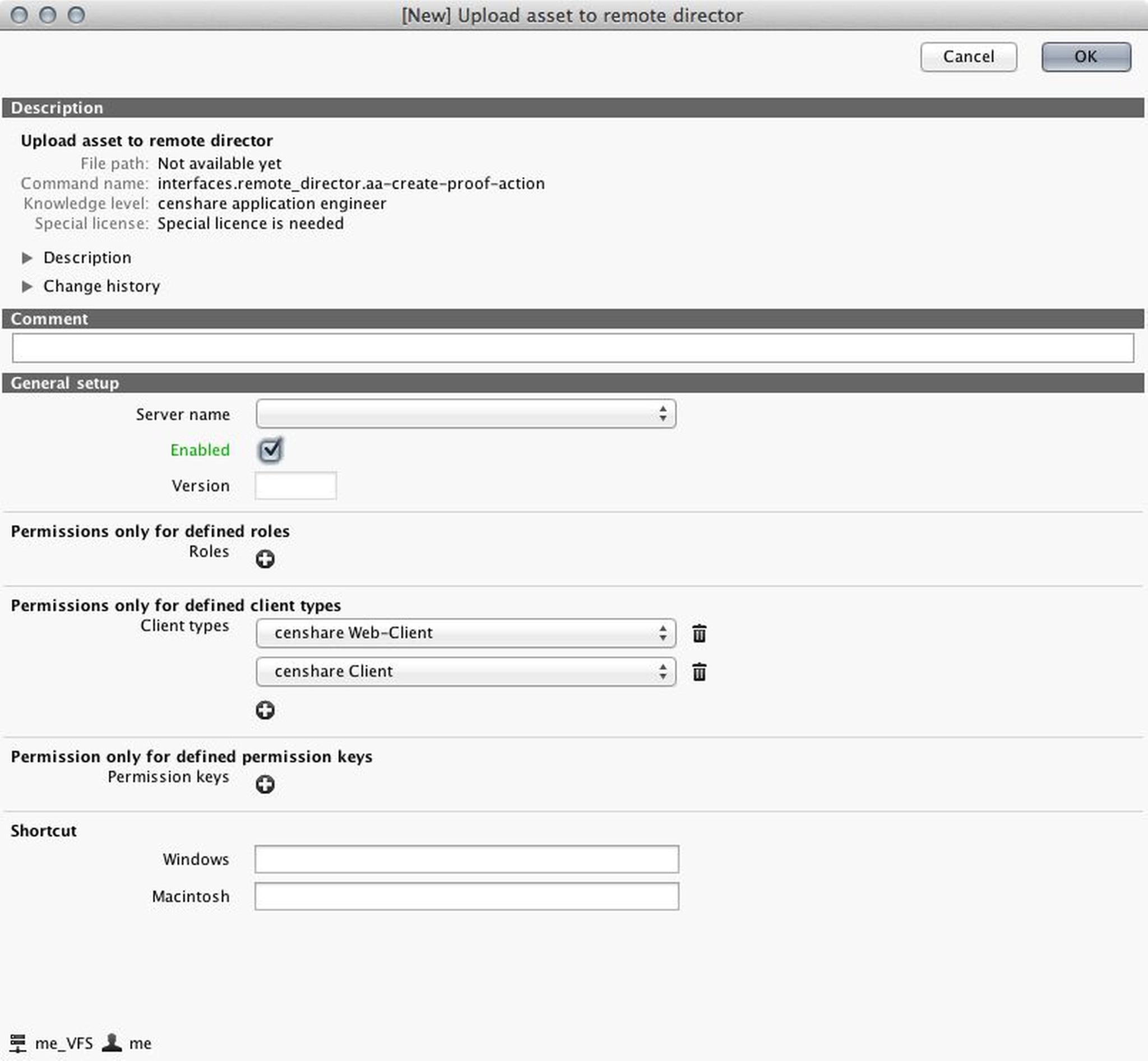

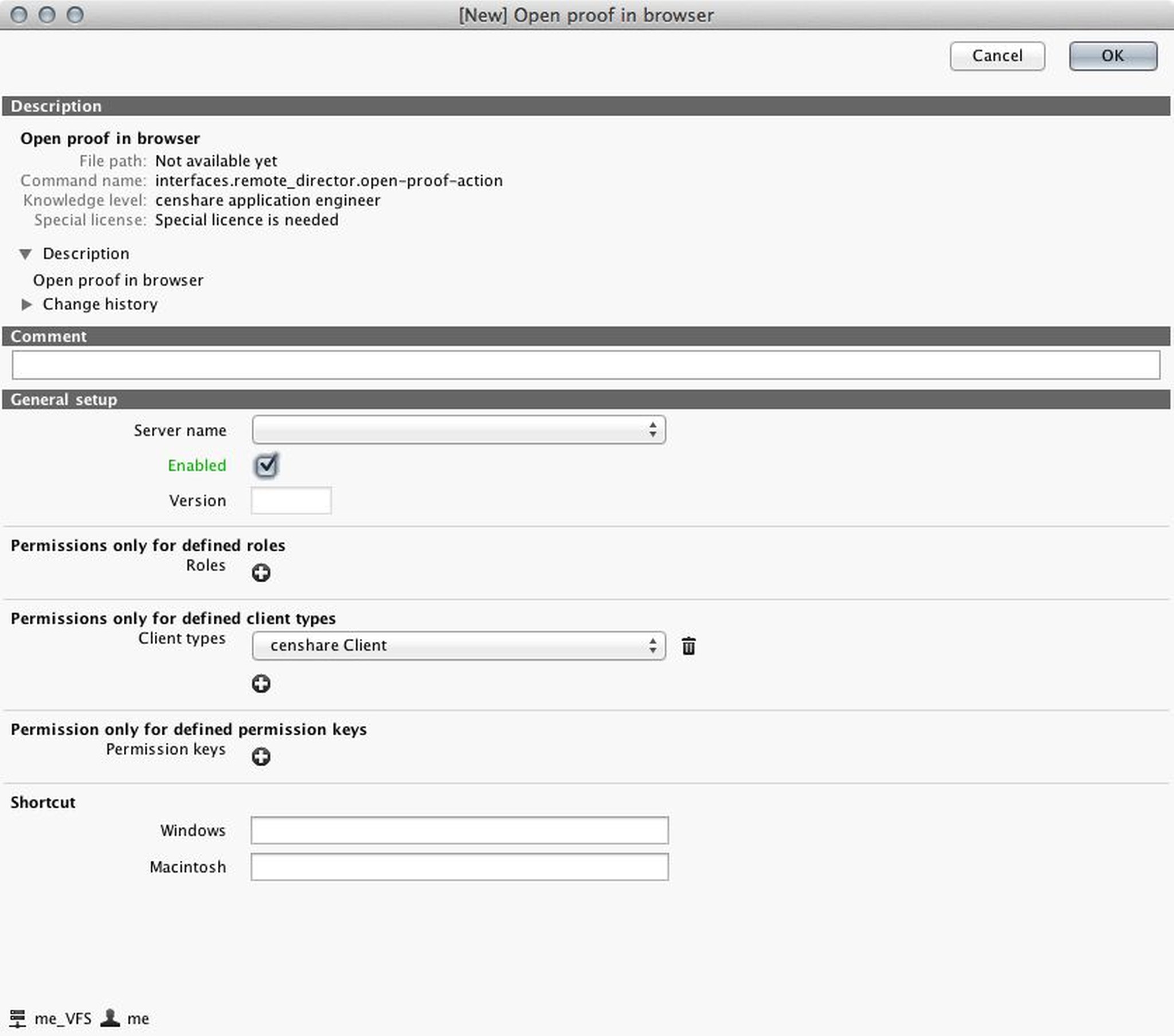

      Activating the two necessary server actions.

      Configuration

      The modules/interfaces/remote_director package implements the Remote Director interface. For earlier censhare versions the interface may be installed manually by adding the package and adding the 3rdParty libraries axis.jarjaxrpc.jar and commons-discovery-0.2.jar from censhare-3rdParty/lib to app/services/scriptlet/lib.

      The configuration has to be done in the XML editor by clicking the XML button in the configuration dialog (rd-include.xml).
      XML
        <settings>
          <setting id="default"  name of the configuration
              serviceURL="http://192.168.214.221/ICSProofServer/services/RD3WS"   Web-Service URL to invoke RD
              userURL="http://192.168.214.221/ProofServer/index.html"  User URL to invoke RD
              adminUser="admin@me.com" adminPWD="xxx"  Administration User (used to create proofs)
              proofUser="user@me.com" proofPWD="xxx"  User (used to open proofs)
              storage-key="pdf"  Storage key for file to upload
              storage-mimetype="application/pdf"  Mimetype of storage item to upload
              feature-key="rd:proof_id"  Feature that stores the proof ID and content version of asset (must be created as type integer pair (long))
              >

            Settings according to prepareProof API method (see below)
            <prepare-proof
              tags=""
              proofType="Color" useMaxLum="true" lumValue="200" illuminant="D50"
              autoLockImages="true" inkCoverage="200" invitees=""
              seatInstructions="" permissions="all" requireCalibration="false"
              viewBooth="" lampType="" dueDate="">
              Settings according to updateProofSettings API method (see below)
              <proof-setting field="defaultProfileFingerprint" value-string="69613d578c77c794cce4d05f8a3f8263" value-float="0.0" value-int="0" value-boolean="false"/>
            </prepare-proof>
            Settings according to addImageToProofID API method (see below)
            <add-image
              csFilesystem="export"  file system for censhare server to upload files
              csRelpath="file:RD-Files/"  relative path for censhare server to upload files
              rdFilepath="\\vmware-host\Shared Folders\Desktop\RD-Files\"  directory path as RD has mounted this file system
              imageServer="localhost"
              defaultRGBProfPath="C:\Program Files\ICS Color Software\Remote Director\Support\Profiles\ICS RGB.icm"
              defaultCMYKProfPath="C:\Program Files\ICS Color Software\Remote Director\Support\Profiles\SWOP2006_Coated5v2.icm"
              defaultLabProfPath="C:\Program Files\ICS Color Software\Remote Director\Support\Profiles\ICS Lab.icm"
              proofProfPath="" profileHandling="UseEmbedded" ripDPI="150"
              ripStartPage="1" ripEndPage="999" jpegQuality="4.0"
              renderingIntent="AbsoluteColorimetric" antialiasing="false"
              preserveSpotColors="true" simulateSpots="false">
            </add-image>
          </setting>
        </settings>


      Parameters

      ProofStruct ics.RD3WS.S_prepareProof2
      (
      String proofName,
      String proofDescription,
      int companyId,
      String tags,
      String proofType,
      boolean useMaxLum,
      int  lumValue,
      String illuminant,
      boolean autoLockImages,
      int inkCoverage,
      String invitees,
      String seatInstructions,
      String permissions,
      boolean requireCalibration,
      String viewBooth,
      String lampType,
      String dueDate,
      String securityTicket
      )  throws Exception

      Creates new proof, adds users to proof.

      Parameters  set are:

      proofName name of proof to be created
      proofDescription description of proof that is being created
      tags arbitrary comma-delimited string of user-definable tags
      proofType type of proof, either "Color" or "ContentOnly"
      useMaxLum should this proof use max luminance
      lumValue if not using maxLum, then this is the luminance value to use for proof
      autoLockImages As of Remote Director 4,0, set to "false" for all proofs.
      illuminant Proof illuminant, one of "D50", "D65", "F2", or "A"
      inkCoverage level of ink coverage that will trigger warning
      invitees list of seat usernames who are invited to this proof, delimited by "|". The first username should be the Proof Creator, as in "grant|bob"
      seatInstructions list of instruction text, delimited by "|". Must be aligned with list of invitees, and have same number of delimited strings
      permissions list of permissions, one or more per seat username invitee, delimited by "|". Set to "all" in Remote Director 4.0
      requireCalibration Set to true if you want to require the proof viewer to be calibrated
      viewBooth type of view booth
      lampType view booth lamp type
      dueDate date the proof is due for signoff
      securityTicket authentication ticket provided by an earlier authentication request

      Returns returns ProofStruct with all information filled in from the proof that was just created

      void ics.RD3WS.S_updateProofSettings
      (
      int inProofID,
      String fieldName,
      String strValue,
      float floatValue,
      int intValue,
      boolean boolValue,
      String securityTicket
      )  throws Exception

      Updates proof parameters after calling s_prepareProof.

      Parameters  set are:
      inProofID  ProofID of the proof that contains the requested image
      fieldName  Metadata field to modify, one of:
      • (Boolean) finished: Set to 0 in Remote Director 4.0
      • (Boolean) useMaxLum
      • (Boolean) syncIntents
      • (Boolean) tileImages: Set to 0 in Remote Director 4.0
      • (Boolean) syncViews: Set to 0 in Remote Director 4.0
      • (Boolean) hideScrolls: Set to 0 in Remote Director 4.0
      • (Boolean) showRulers: Set to 0 in Remote Director 4.0
      • (Boolean) requireCalibration
      • (Boolean) autoLockImages: Set to 0 in Remote Director 4.0
      • (Int) inkCoverage
      • (Int) lumValue
      • (String) jdfURL
      • (String) description
      • (String) jdfContents
      • (String) viewBooth
      • (String) lampType
      • (String) defaultProfileFingerprint
      • (String) defaultRenderingIntent
      • (String) dueDate
      • (String) illuminantCode
      • (Int) activeImageID
      • (Boolean) finished
      • (String) defaultPrintProcess
      • (String) company
      • (String) xmlSignoffStatus

      strValue  If metadata is of type String, pass value in this parameter. Other params are ignored.
      floatValue  If metadata is of type Float, pass value in this parameter. Other params are ignored.
      intValue  If metadata is of type Int, pass value in this parameter. Other params are ignored.
      boolValue  If metadata is of type Boolean, pass value in this parameter. Other params are ignored.
      securityTicket
      authentication ticket provided by an earlier authentication request

      int ics.RD3WS.S_addImageToProofID
      (
      int proofID,
      String imageServer,
      String imageFilePath,
      String defaultRGBProfPath,
      String defaultCMYKProfPath,
      String defaultLabProfPath,
      String proofProfPath,
      String profileHandling,
      int ripDPI,
      int ripStartPage,
      int ripEndPage,
      String description,
      float jpegQuality,
      String renderingIntent,
      boolean antialiasing,
      boolean preserveSpotColors,
      String password,
      boolean simulateSpots,
      int version,
      String securityTicket
      )   throws Exception

      Adds an image to an existing proof.

      Parameters  set are:

      proofID
      proofID from earlier s_prepareProof
      imageServer
      name of Image Server that will contain this proof. Note: this is not the IP address, but rather the human-readable name as shown on the Proofbuyer portal on the tserver
      imageFilePath
      full path to image file that is to be added. Note: must be resolvable from filesystem of the Image Server machine. You may specify any path, as long as the Image Server can reach it using standard fopen() calls.
      defaultRGBProfPath
      full path to default RGB profile Note: must be resolvable from filesystem of the Image Server machine.
      defaultCMYKProfPath
      full path to default CMYK profile Note: must be resolvable from filesystem of the Image Server machine.
      defaultLabProfPath
      full path to default Lab profile Note: must be resolvable from filesystem of the Image Server machine.
      proofProfPath
      full path to the proce profile. Overrides the embedded profile and sets proofProfPath as the source profile in Remote Director. Note: must be resolvable from filesystem of the Image Server machine.
      profileHandling
      How to handle embedded profiles: one of "UseEmbedded", "ApplyProofProfile"
      ripDPI
      resolution of RIP rendering
      ripStartPage
      if PDF is multipage, first page number to RIP
      ripEndPage
      if PDF is multipage, last page number to RIP, maximum 999
      description
      text description of the file
      jpegQuality
      number between 1.0 and 10.0 that represents lossy compression quality of JPEG2000 image. 4.0 is a reasonable level, 10.0 is lossless (but generates very large files).
      renderingIntent
      one of "Perceptual", "AbsoluteColorimetric", "RelativeColorimetric"
      antialiasing
      If true, enable antialiasing in the RIP. If false, do not antialias.
      preserveSpotColors
      if true, do not convert spot channels to CMYK. If false, and the PDF contains spot channels, then all spot channels are flattened to their equivalent CMYK Process colors.
      password
      Password of the user adding the file to the proof.
      simulateSpots
      If true, then Remote Director extracts simulated spot color values from the PDF file. If false, then Remote Director searches for installed Pantone Library. If no Library is present, then colors are not automatically rendered and a user must manually define the color.
      version
      Sets the version number of the file.
      securityTicket
      authentication ticket provided by an earlier authentication request
      Returns
      returns ProofImageID of image that was just added to the Proof

      Setting proofProfPath to an empty string and profileHandling to "UseEmbedded" and RIP will automatically extract the embedded profile from the file. If no embedded profile is present, then the appropriate default profile will be used.
