Performance analysis via censhare Client

How to - Client Logging - Getting performance data of a defined censhare Client task

To find the cause of a performance problem, we need detailed data of the slow client action.
Here you can find the way how to gather this performance data.

/*<![CDATA[*/ div.rbtoc1764326948146 {padding: 0px;} div.rbtoc1764326948146 ul {list-style: disc;margin-left: 0px;} div.rbtoc1764326948146 li {margin-left: 0px;padding-left: 0px;} /*]]>*/ Collect Client Performance Data Collect Server Performance Data

Collect Client Performance Data

• logon to the [censhare] Application Server.

• Switch censhare Client into admin mode.

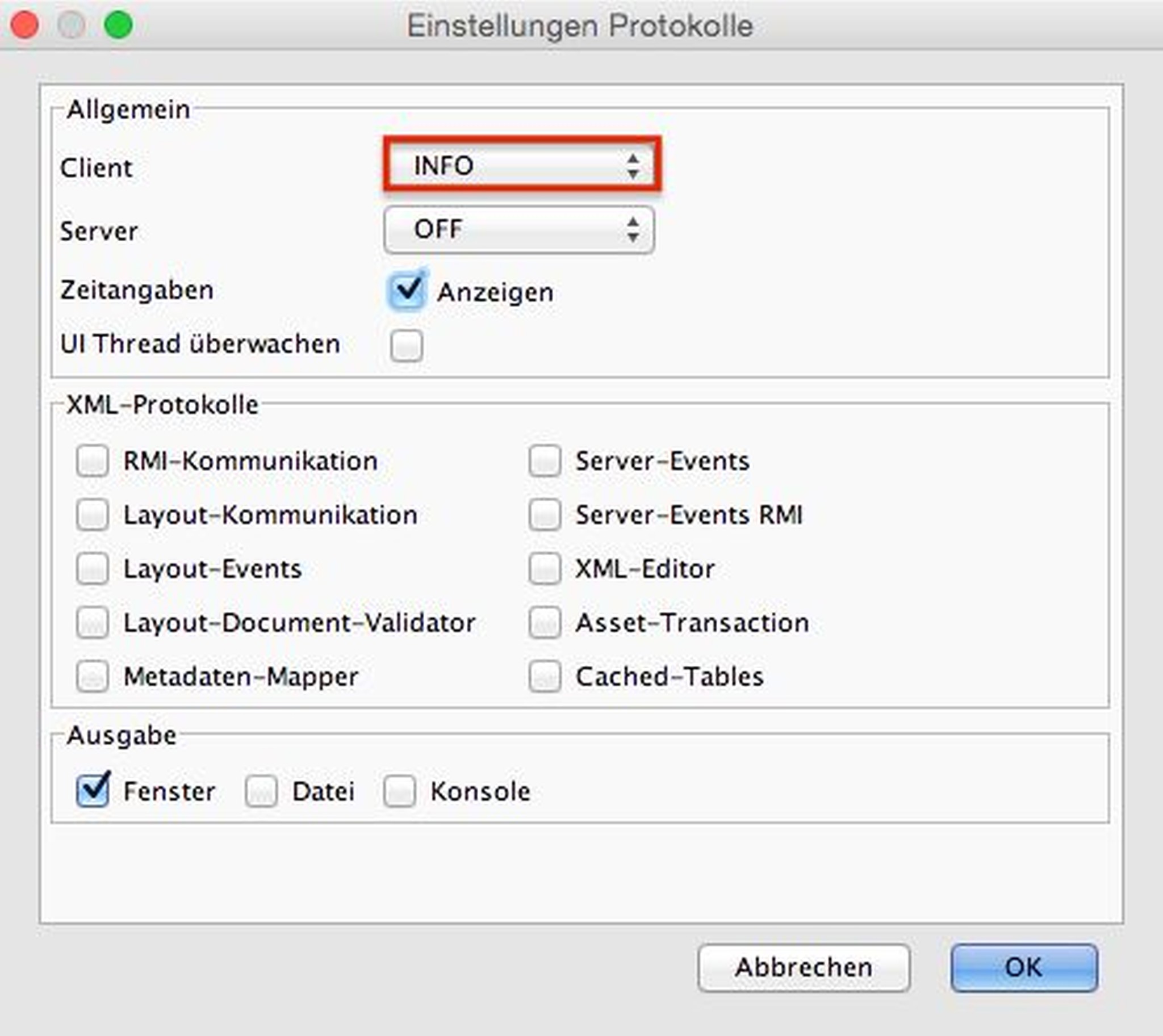

• go to the menu "File/Preferences/Logs..." and activate only "General/Client/" to level "INFO" and "General/Trace time". Be sure to set the "Output" to "Window"

• Perform the task you want to measure (e.g. checkout)

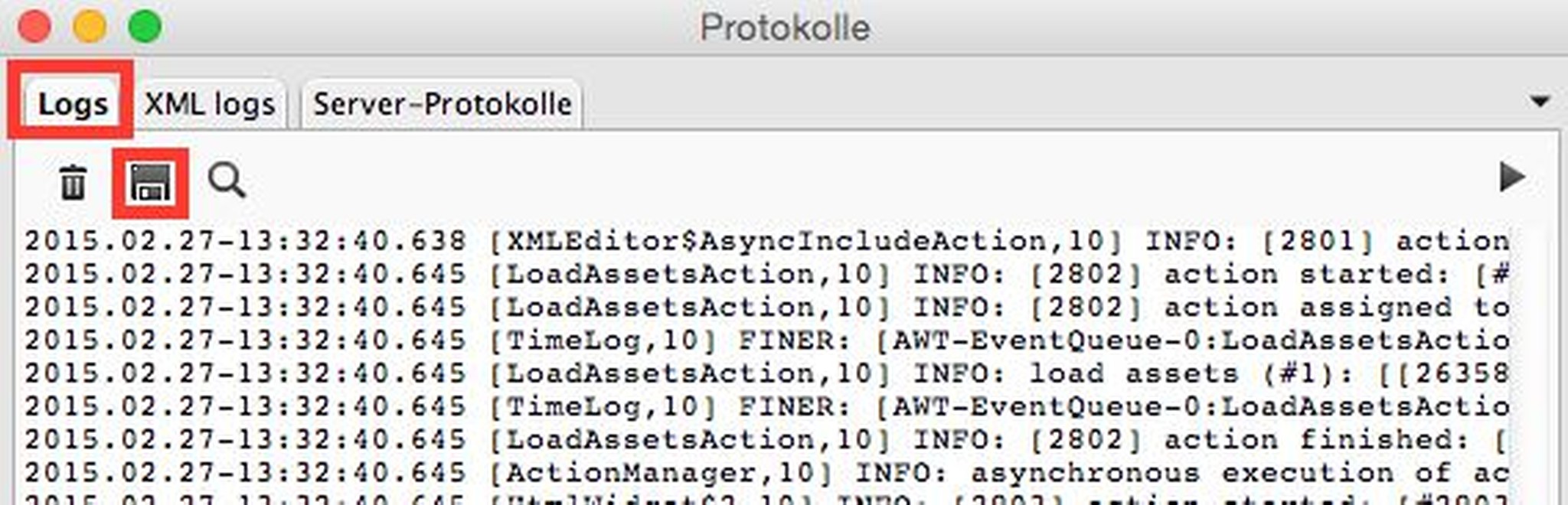

• You will get a new "Logs"-window with three tabs. Save the contents of the "Logs"-tab. With this information we can analyse what happened

• If you want to get the performance data of a further action, delete the current protocols by pressing the trash button

• Perform the next task you want to measure (e.g. checkin)

• again save the content of the "Logs"-tab

Collect Server Performance Data

• logon to the [censhare] Application Server. In case of remote server environment, login to a server with a direct database connection (only so we get the Oracle Statement timing)

• Switch censhare Client into admin mode.

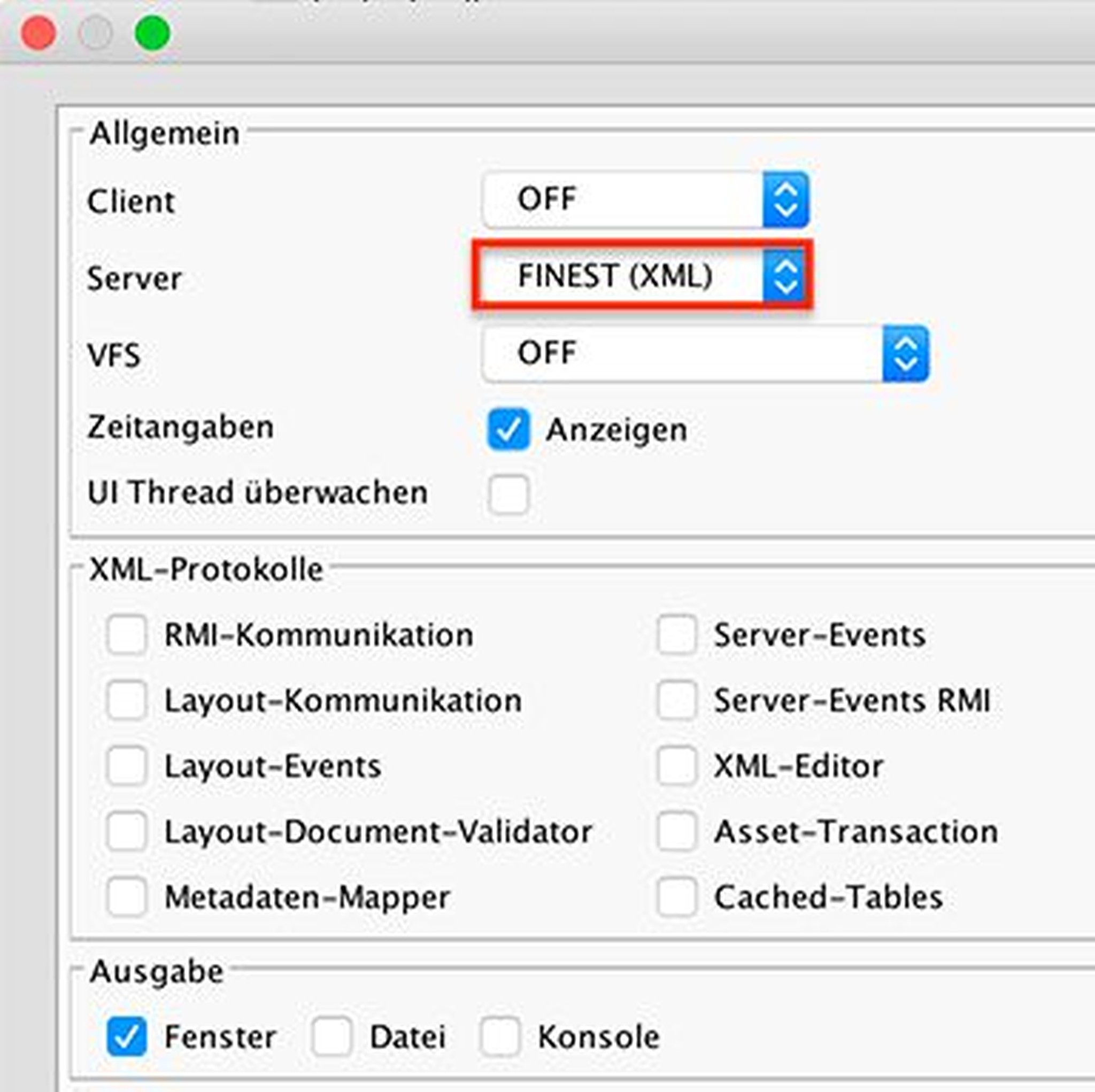

• go to the menu "File/Preferences/Logs..." and activate only "General/Server/" to level "FINEST (XML)" and "General/Trace time". Be sure to set the "Output" to "Window"

• Perform the task you want to measure (e.g. checkout)

• You will get a new "Logs"-window with three tabs. Save the contents of the "Logs"- and "Server logs"-tab. With this information we can analyse what happened

• If you want to get the performance data of a further action, delete the current protocols by pressing the trash button

• Perform the next task you want to measure (e.g. checkin)

• again save the contents of the "Logs"- and "Server logs"-tab
